SERVICES FOR EVERY PHASE OF YOUR PROJECT
Specify your elevator in three easy steps with our helpful tools and expert advice & benefit from professional project management and proven installation methods
KONE elevators for new buildings
Give your building a lift hat makes an impact: - a stylish interior, a smooth and silent ride as well as a low carbon footprint. Our elevators ensure exceptional people and goods flow in all types of buildings – from the smallest residential buildings to the world’s highest skyscrapers.
Why work with KONE?
ELEVATORS FOR ALL TYPES OF BUILDINGS
Leading eco-efficiency, superb ride comfort and usability & innovative and flexible design
TOOLS AND DOWNLOADS
ECO-EFFICIENCY
Our revolutionary eco-efficient solutions and services that helps our customers reduce their building's carbon footprint, cut energy costs and in achieving green building accreditations such as LEED or BREEAM.
RIDE COMFORT
The latest innovations give our lifts an even smoother ride with less noise and vibration, and minimum disturbance to building occupants. With improvements to the EcoDisc® motor and centralised hoisting, our solutions are also more space and energy-efficient.
SIGNALISATION
KONE has a signalisation series for every type of building and lift. These will complement your building’s and lift’s style, and are designed to take the user’s needs into account.
Elevator solutions
| Product
| Description + segment
| Machine room
| Max. speed
| Max. travel
| Max. load/persons
|
|---|---|---|---|---|---|
| KONE E MiniSpace
| Economical elevator for residential buildings
| Yes | 2.5 m/s
| 120 m
| 1000 kg/ up to 13 persons
|
| KONE N MiniSpace
| Versatile elevator for mid-rise residential buildings
| Yes
| 3.0 m/s
| 150 m
| 1350 kg/ up to 18 persons
|
| KONE S MiniSpace
| High-performance elevator for mid and high-rise buildings
| Yes
| 3.0 m/s
| 150 m
| 1600 kg/ up to 21 persons
|
| KONE MiniSpace
| High-speed elevator for high-rise buildings
| Yes
| 4.0 m/s
| 210 m
| 2000 kg/ up to 26 persons
|
| KONE Highrise MiniSpace
| High-speed elevator for high-rise buildings | Yes
| 10.0 m/s
| 400 m
| 2000 kg/ up to 26 persons
|
| KONE E MonoSpace
| Economical elevator for residential buildings
| No
| 1.75 m/s
| 75 m
| 1000 kg/ up to 13 persons
|
| KONE N MonoSpace
| Versatile elevator for low and mid-rise residential and commercial buildings
| No
| 2.5 m/s
| 90 m
| 1600 kg/ up to 21 persons
|
| KONE S MonoSpace
| Highly flexible elevator solution for demanding commercial buildings
| No | 3.0 m/s
| 150 m
| 2500 kg/ up to 36 persons
|
| KONE TranSys
| Adaptable passenger and goods elevator solution for public transport, retail, hospital buildings
| No
| 1.0 m/s
| 40 m
| 4000kg/ up to 53 persons
|
| KONE Bed elevator
| Elevator designed especially for hospitals
| Yes & No
| 2.0 m/s
| 75 m
| 2000 kg/ up to 26 persons |
Services and support for design and planning
BUILDING DESIGN
- Consultation for creating the optimal people flow for your building
- Traffic analysis, planning and simulation
- Energy consumption calculations
ELEVATOR PLANNING AND SPECIFICATION
- Easy to use online KONE elevator toolbox
- Elevator CAD drawings, 3D BIM, elevator specification
ELEVATOR INTERIOR DESIGN
- KONE design collection with inspirational interiors
- Customized your elevator car interior for a unique look
- Material samples available from KONE sales persons
Services and support during construction
INSTALLATION PLANNING AND SITE PREPARATION
- A professional project manager and team
- A detailed project plan and active communication during each phase
- Clearly defined site requirements to ensure installation can start on time
ELEVATOR INSTALLATION AND CONSTRUCTION TIME USE
- Proven, efficient and safe installation methods
- Elevators in use during construction to increase efficiency on site

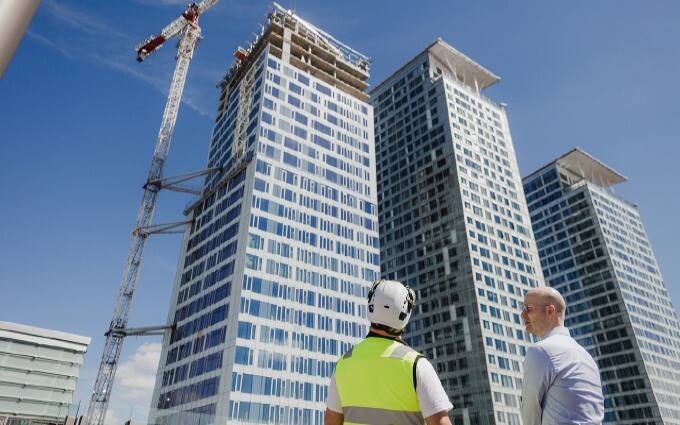

- KONE JumpLift for construction time use in higher buildings
HANDOVER AND MAINTENANCE
- Thorough ride comfort check before handover
- A maintenance contract tailored to your needs
- Modernization solutions for the complete lifecycle of your building
